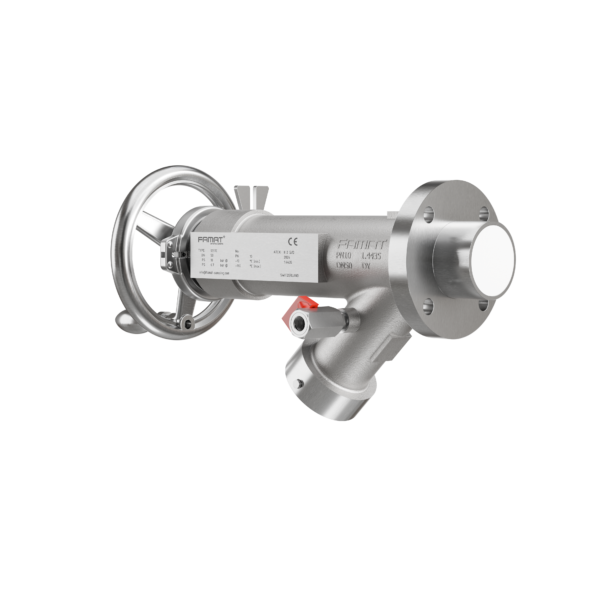

125TC EASYCLEAN

Categories ,

KEY FEATURES & BENEFITS :

  • Designed for powders, granules, pastes and liquids sampling
  • 2.5” Tri-Clamp (TC) connection near the handwheel for quick access
  • Easy-clean design with removable piston assembly
  • No O-rings in product contact, reducing contamination risks and maintenance
  • Full access to internal valve surfaces for efficient cleaning between batches
  • Reduced cleaning time and simplified maintenance
  • Quick and safe bottle connection with bayonet system

SPECIFICATIONS :

MODEL

125TC

NOMINAL SIZE

DN 50 (2’’)

PRESSURE CLASS

PN10

PRESSURE DESIGN

Vacuum to 10 bar (0-145 psi)

MAX TEMPERATURE

+180°C / +356°F

MIN. TEMPERATURE

-10°C / -14°F

MATERIAL

Stainless steel (1.4435/04/316L), Hastelloy® (2.4602/C22), Titanium (Grade 7), etc

SEALS MATERIAL

FKM, FFKM, FEP-Viton, EPDM (All FDA)

INT. ROUGHNESS

Ra ≤0.8 µm (polishing on request)

EXT. ROUGHNESS

Ra ≤6.3 µm (polishing on request)

SAMPLE UNIT

Bottle 150 ml*, glass Borosilicate with stainless steel protection (*autre sur demande)

WEIGHT/GEWICHT/POIDS

11kg / 24 lbs

APPLICABLE STANDARDS

2014/68/UE (PED) – 2014/34/UE (ATEX) – FDA
