130OEL HIGH CONTAINMENT

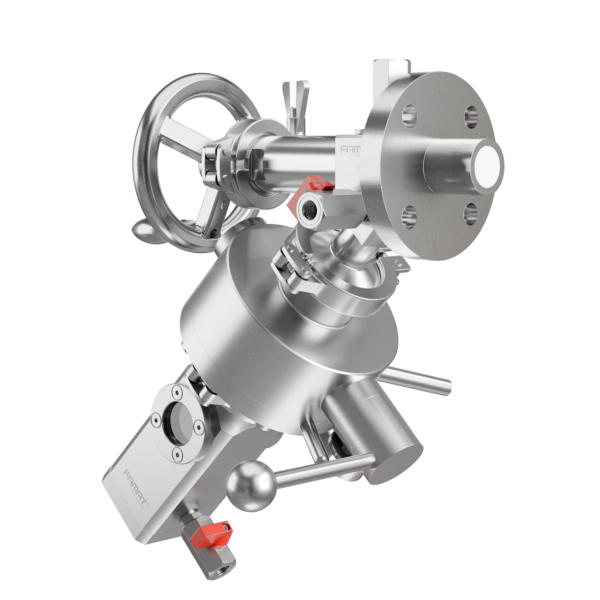

Extremely compact OEL High-Containment sampling system allowing removal of a product sampled under contained conditions.

CONTAINMENT PERFORMANCE :

• (OEL) level range : 1-10μg/m3 (without aspiration)
• (OEL) level range : < 1μg/m3 (with aspiration)

KEY FEATURES :

• • High-containment split butterfly valve system
  • Active/passive module design
  • Bottle removal under contained conditions
  • Hygienic and drainable product-contact area
  • Suitable for high-potency and aseptic applications
  • Compatible with CIP/SIP processes

SPECIFICATIONS :

MODEL

130OEL

NOMINAL SIZE

DN 25 (1’’)

PRESSURE CLASS

PN6

PRESSURE DESIGN

Vacuum to 6bar (0-87psi) Max pressure: 6 bar (coupled) / 0.2 bar (uncoupled)

MAX TEMPERATURE

+180°C / +356°F

MIN. TEMPERATURE

-10°C / -14°F

MATERIAL

Stainless steel (1.4435/04/316L), Hastelloy® (2.4602/C22) (other on demand)

SEALS MATERIAL

EPDM, FKM, FFKM, FEP (All FDA)

INT. ROUGHNESS

Ra ≤0.8 µm (polishing on request)

SAMPLE UNIT

Bottle 250 ml, with glass sight windows, stainless steel protection and purge

HIGH CONTAINMENT VALVE

Split butterfly valve, consisting of 2 separable half-valves, with locking system: 1x active module isolating the outlet of sampling valve & 1x passive module, removable in closed position, isolating the sampling bottle.

APPLICABLE STANDARDS

2014/68/UE (PED) – 2014/34/UE (ATEX) – FDA
