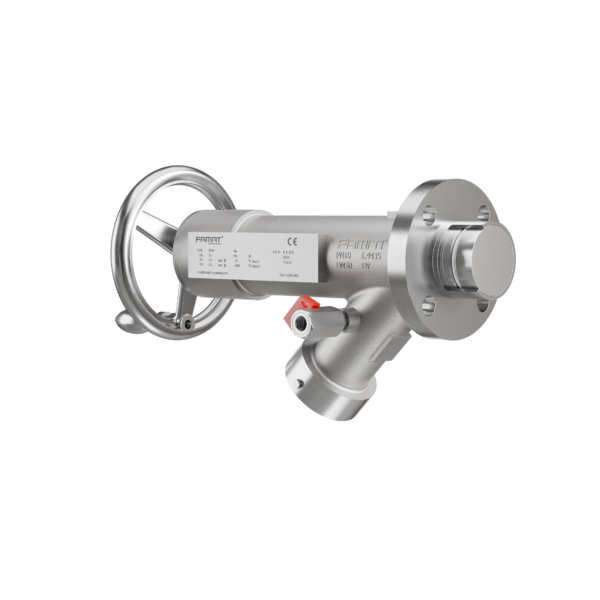

125M HIGH TEMPERATURE

The 125M sampling valve is equipped with a metallic piston (Stainless Steel, Hastelloy) for sampling process up to 300°C (572° F).

The piston is equipped with a expandable gasket which recedes into the piston during movement, in order not to be damaged.

Tightness from vacuum up to 10 bar (145 psi).

MODEL

125M

NOMINAL SIZE

DN 50 (2’’)

PRESSURE CLASS

PN10

PRESSURE DESIGN

Vacuum to 10 bar (0-145 psi)

MAX TEMPERATURE

+260°C / +500°F (FDA), +300°C / +572°F (NOT FDA)

MIN. TEMPERATURE

-10°C / -14°F

BODY MATERIAL

Stainless steel (1.4435/04/316L), Hastelloy® (2.4602/C22), Titanium (Grade 7), etc

SEALS MATERIAL

High temperature perfluorelastomer FFKM

INT. ROUGHNESS

Ra ≤0.8 µm (polishing on request)

EXT. ROUGHNESS

Ra ≤3.2 µm (polishing on request)

SAMPLE UNIT

Bottle 150 ml*, glass Borosilicate with stainless steel protection (*autre sur demande)

WEIGHT/GEWICHT/POIDS

13kg / 29 lbs

APPLICABLE STANDARDS

2014/68/UE (PED) – 2014/34/UE (ATEX) – FDA
