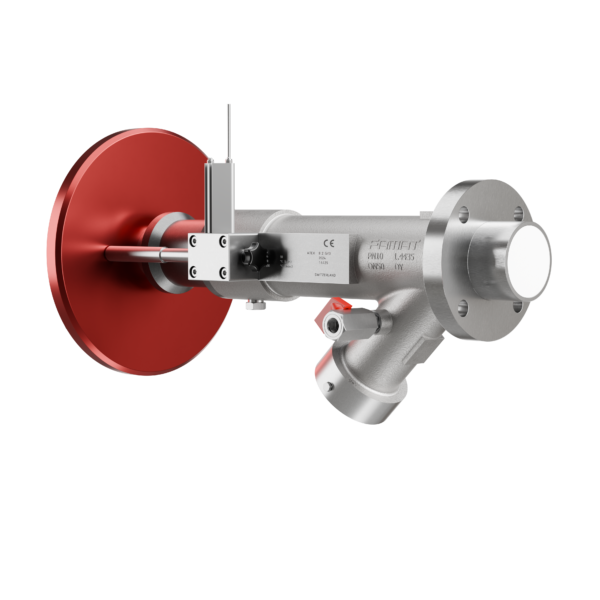

This valve is used for products that could clog inside the dryer or vessel and block the piston. To eliminate the risk of this impeding product flow into the sampling valve, FAMAT has developed the 125CC. With this type of valve, the piston will break the crust before the sample is taken.
1. Remove the security device
2. Turn the red handwheel clockwise to move the piston into the dryer to break the crust
3. Once the crust has been broken, proceed with the standard sampling by means of the black handwheel, to get the sample inside the bottle
MODEL
125CC
NOMINAL SIZE
DN 50 (2’’)
PRESSURE CLASS
PN10
PRESSURE DESIGN
Vacuum to 10 bar (0-145 psi)
MAX TEMPERATURE
+180°C / +356°F
MIN. TEMPERATURE
-20°C / -4°F
BODY MATERIAL
Stainless steel (1.4435/04/316L), Hastelloy® (2.4602/C22), Titanium (Grade 7), etc
SEALS MATERIAL
Viton, FEP-Viton, Perfluorelastomer FFKM, EPDM (All FDA)
INT. ROUGHNESS
Ra ≤0.8 µm (polishing on request)
EXT. ROUGHNESS
Ra ≤3.2 µm (polishing on request)
SAMPLE UNIT
Bottle 150 ml*, glass Borosilicate with stainless steel protection (*autre sur demande)
WEIGHT/GEWICHT/POIDS
14kg / 31 lbs
APPLICABLE STANDARDS
2014/68/UE (PED) – 2014/34/UE (ATEX) – FDA
