FAMAT charging valve has been developed to load vessels and reactors.
On top of the advantage of expanding piston, when used as a charging valves, the piston has the advantage of pushing all the load inside the vessel, without any loss of product.

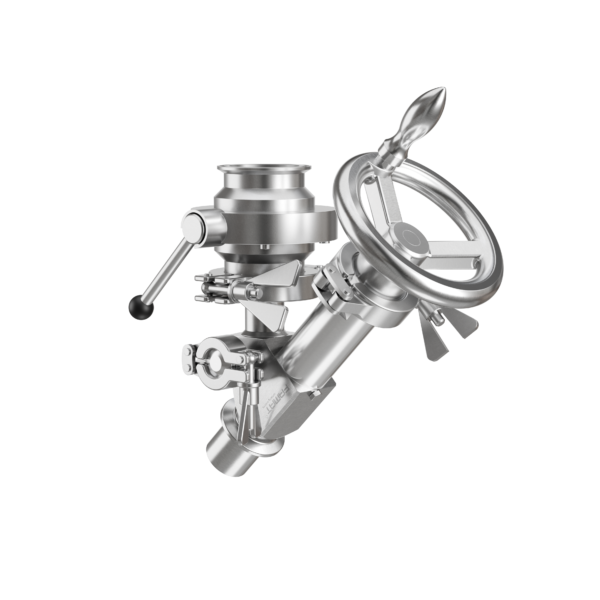

As per the picture, the valve can be equipped with an hygienic butterfly valve to completely isolate the supply line.
MODEL
325A
NOMINAL SIZE
DN 25 (1’’)
MAX TEMPERATURE
+180°C / +356°F
MIN. TEMPERATURE
-20°C / -4°F
PRESSURE CLASS
PN10
PRESSURE DESIGN
Vacuum to 10 bar (0-145 psi)
INT. ROUGHNESS
Ra ≤0.8 µm (polishing on request)
APPLICABLE STANDARDS
2014/68/UE (PED) – 2014/34/UE (ATEX) – FDA
SEALS MATERIAL
Viton, Viton/FEP/PFA, Perfluorelastomer FFKM; EPDM (All FDA)
