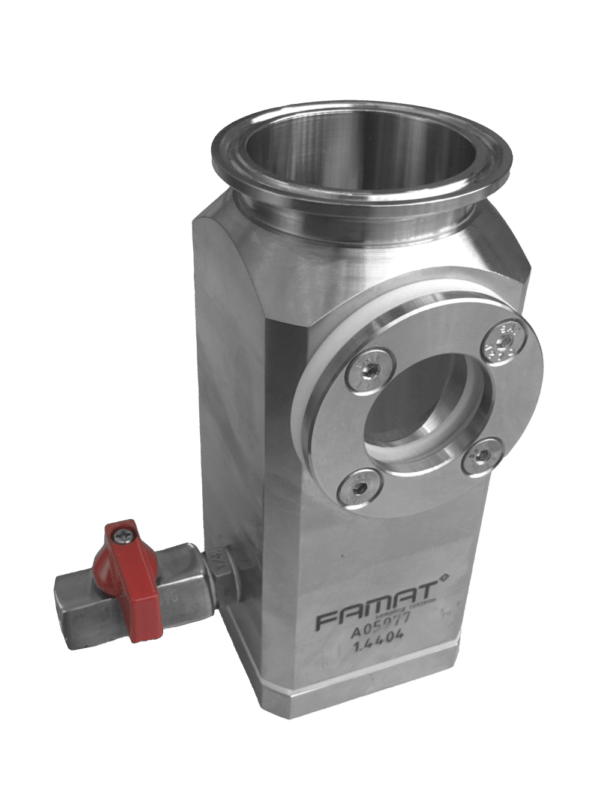

BOTTLE B102 TC

When maximum shock resistance is required, the bottle B102 is the best option for the valve DN50.
Tri-calmp connection to install directly under the valve or with a butterfly in between.
The bottle has a solid metallic body, with glass windows. The material of the bottle body in contact with the product can be selected following the application.
Also availabe with a purge for cleaning in place.
ATEX & FDA approval for most application.

MODEL

B102

Size

150ml
(Optional 250ml / 500ml)

Applicable to

– Sampling DN50
– Sampling DN25
– Horizontal sampling

MAX TEMPERATURE

+260°C / +300°F

MIN. TEMPERATURE

-40°C / -40°F

PRESSURE DESIGN

Vacuum to 10 bar (0-145 psi)

INT. ROUGHNESS

Ra ≤0.8 µm (polishing on request)

Gasket

PTFE
