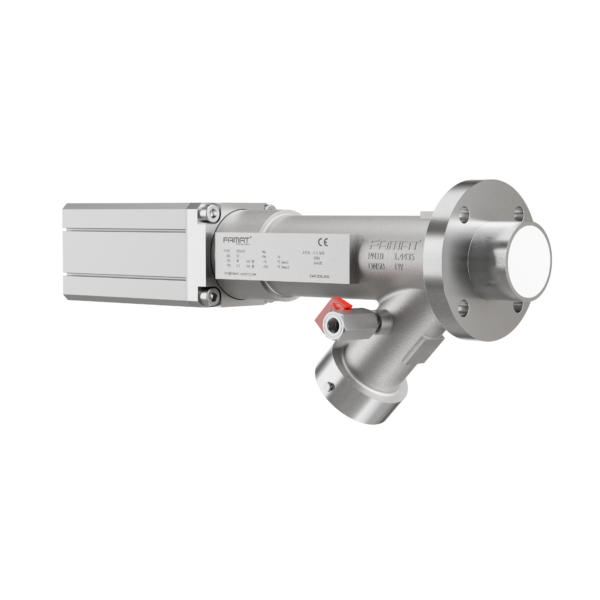

125AUT AUTOMATIC

Standard sampling valve with a double acting pneumatic actuator.
Proximity switch for open/closed position, electrovalves, push button5/2 and control panel possible on demand

MODEL

125AUT

NOMINAL SIZE

DN 50 (2’’)

PRESSURE CLASS

PN10

PRESSURE DESIGN

Vacuum to 10 bar (0-145 psi)

MAX TEMPERATURE

+180°C / +356°F

MIN. TEMPERATURE

-20°C / -4°F

BODY MATERIAL

Stainless steel (1.4435/04/316L), Hastelloy® (2.4602/C22), Titanium (Grade 7), etc

SEALS MATERIAL

Viton, FEP-Viton, Perfluorelastomer FFKM, EPDM (All FDA)

INT. ROUGHNESS

Ra ≤0.8 µm (polishing on request)

EXT. ROUGHNESS

Ra ≤3.2 µm (polishing on request)

SAMPLE UNIT

Bottle 150 ml*, glass Borosilicate with stainless steel protection (*autre sur demande)

DESCRIPTION OF THE ACTUATOR

Double-acting pneumatic actuation device aluminum body. Operating pressure: 6 to 10 bar.  G 1/8 ‘’ connections

PROXIMITY DETECTOR

Inductiv

WEIGHT/GEWICHT/POIDS

13kg / 29 lbs

APPLICABLE STANDARDS

2014/68/UE (PED) – 2014/34/UE (ATEX) – FDA
