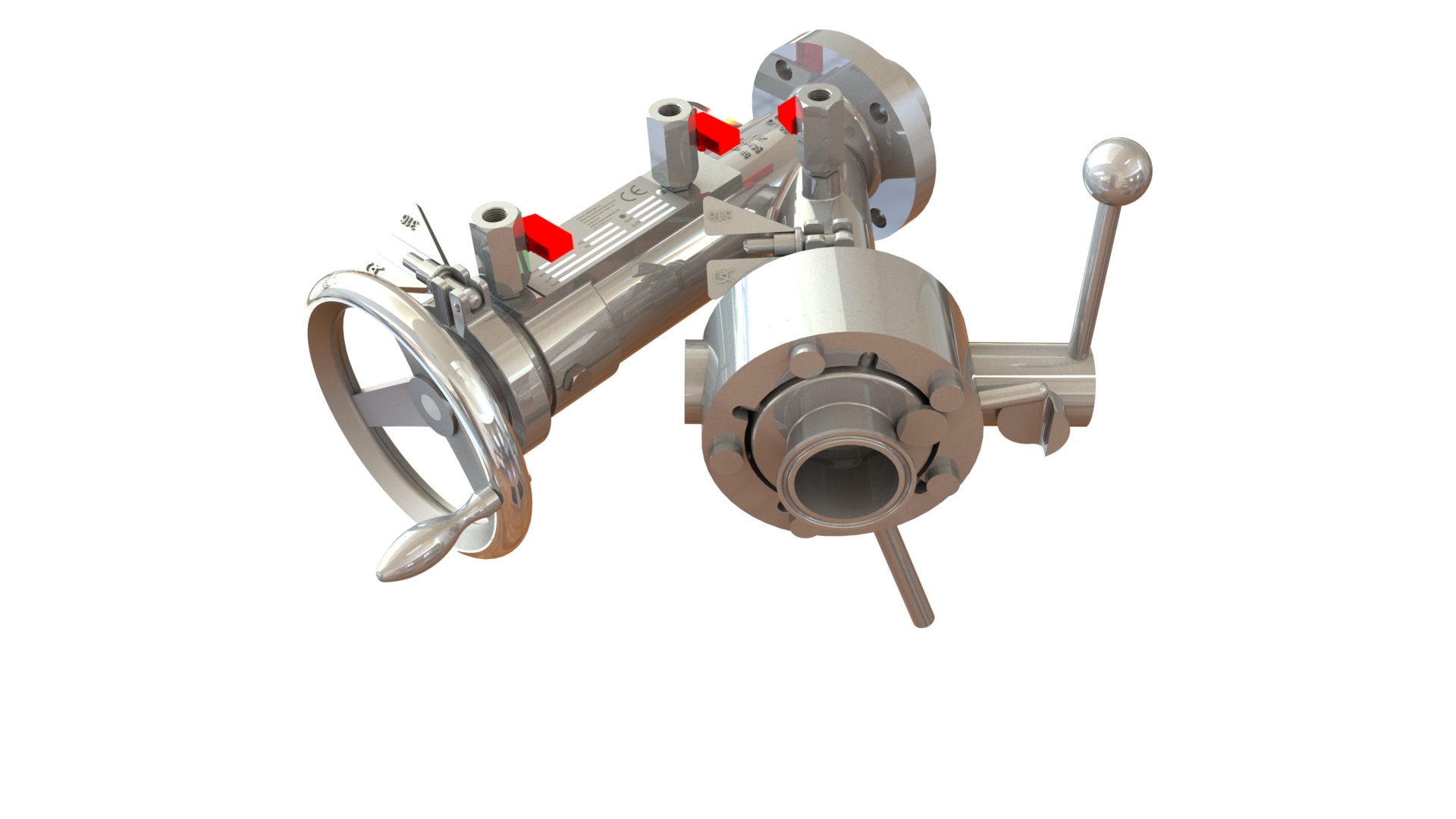

125TC/OEL High Containment
This new compact OEL High-Containment sampling device allows the removal of a product sampled under contained conditions.
The OEL (Occupational Exposure Limit) describes the maximum concentration of a drug substance which can be tolerated in the air of the production room without any negative effect to the health of the operators.
- (OEL) level range : 1-10μg / m3 (without aspiration)
- (OEL) level range : below 1μg / m3 (with aspiration)
Additional information
| MODEL | |
|---|---|
| NOMINAL SIZE | |
| PRESSURE CLASS | |
| PRESSURE DESIGN | |
| MAX TEMPERATURE | |
| MIN. TEMPERATURE | |
| BODY MATERIAL | Stainless steel (1.4435/04/316L), Hastelloy® (2.4602/C22), Titanium (Grade 7), etc |
| SEALS MATERIAL | Viton, Viton/FEP/PFA, Perfluorelastomer FFKM; EPDM (All FDA) |
| INT. ROUGHNESS | |
| EXT. ROUGHNESS | |
| SAMPLE UNIT | Bottle 150 ml*, glass Borosilicate with stainless steel protection (*autre sur demande) |
| HIGH CONTAINMENT VALVE | Split butterfly valve, consisting of 2 separable half-valves, with locking system:, 1 active module isolating the outlet of sampling valve, 1 passive module, removable in closed position, isolating the sampling bottle., Max pressure: Active valve: closed 6 bar, opened 0.2 bar Max Pressure Passive valve: closed 0.2 bar, opened 0.2 bar, Wetted parts 1.4404/316L (or Hastelloy) | Gaskets: EPDM; FFKM |
| WEIGHT/GEWICHT/POIDS | |
| APPLICABLE STANDARDS |
