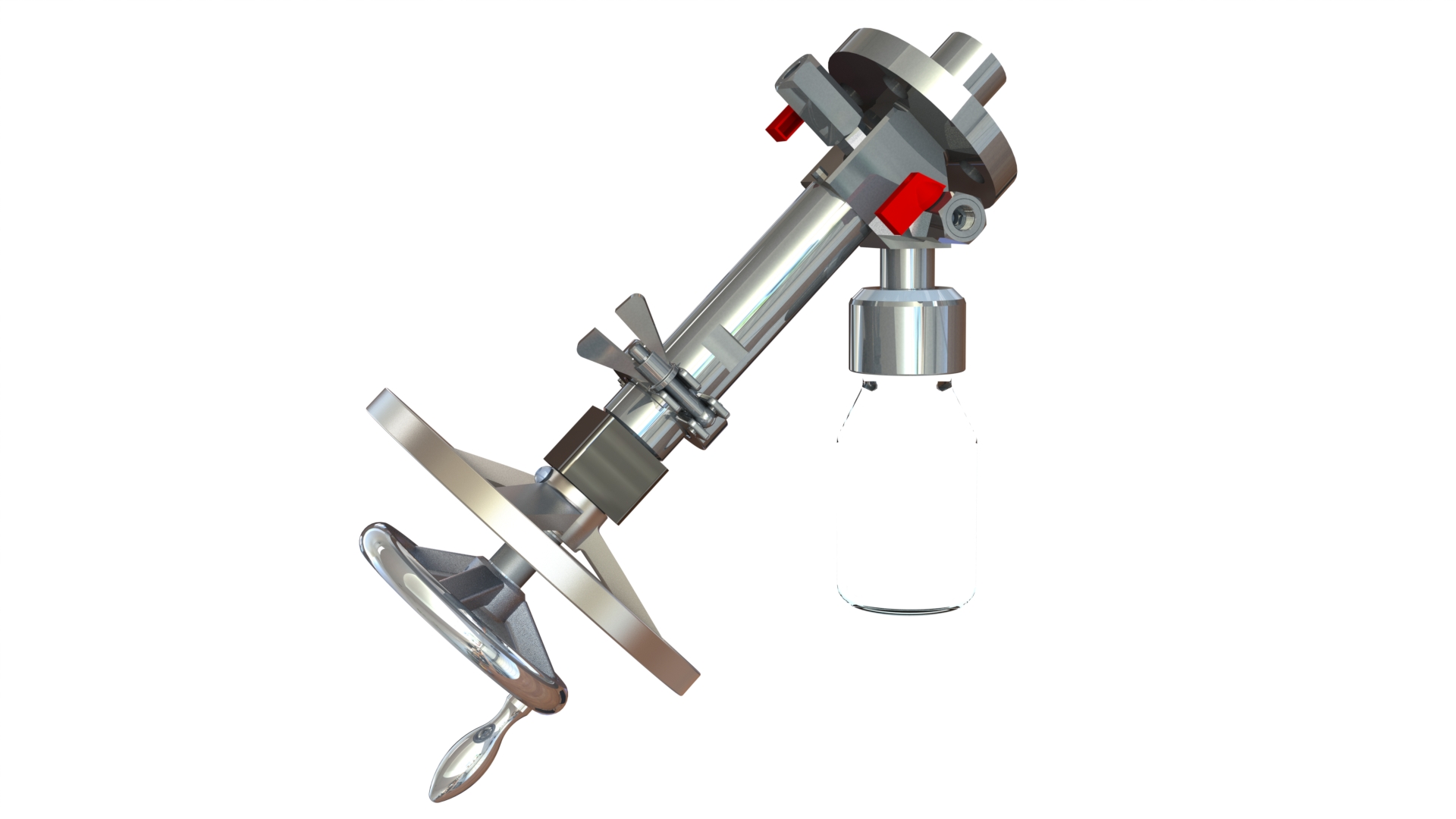

This valve is used for products that could clog inside the dryer or vessel and block the piston. To eliminate the risk of this impeding product flow into the sampling valve, FAMAT sampling developed the 130CC designed with a special piston able to break the crust before taking the sample.
1. Remove the security device
2. Turn the red handwheel clockwise to move the piston into the dryer to break the crust
3. Once the crust has been broken, proceed with the standard sampling by means of the black handwheel, to get the sample inside the bottle
| MODEL | |
|---|---|
| NOMINAL SIZE | |
| MAX TEMPERATURE | |
| MIN. TEMPERATURE | |
| PRESSURE CLASS | |
| PRESSURE DESIGN | |
| INT. ROUGHNESS | |
| APPLICABLE STANDARDS | |
| SEALS MATERIAL | Viton, Viton/FEP/PFA, Perfluorelastomer FFKM; EPDM (All FDA) |
| SAMPLE UNIT | |
| Piston C.B. Lenght | 25mm |
