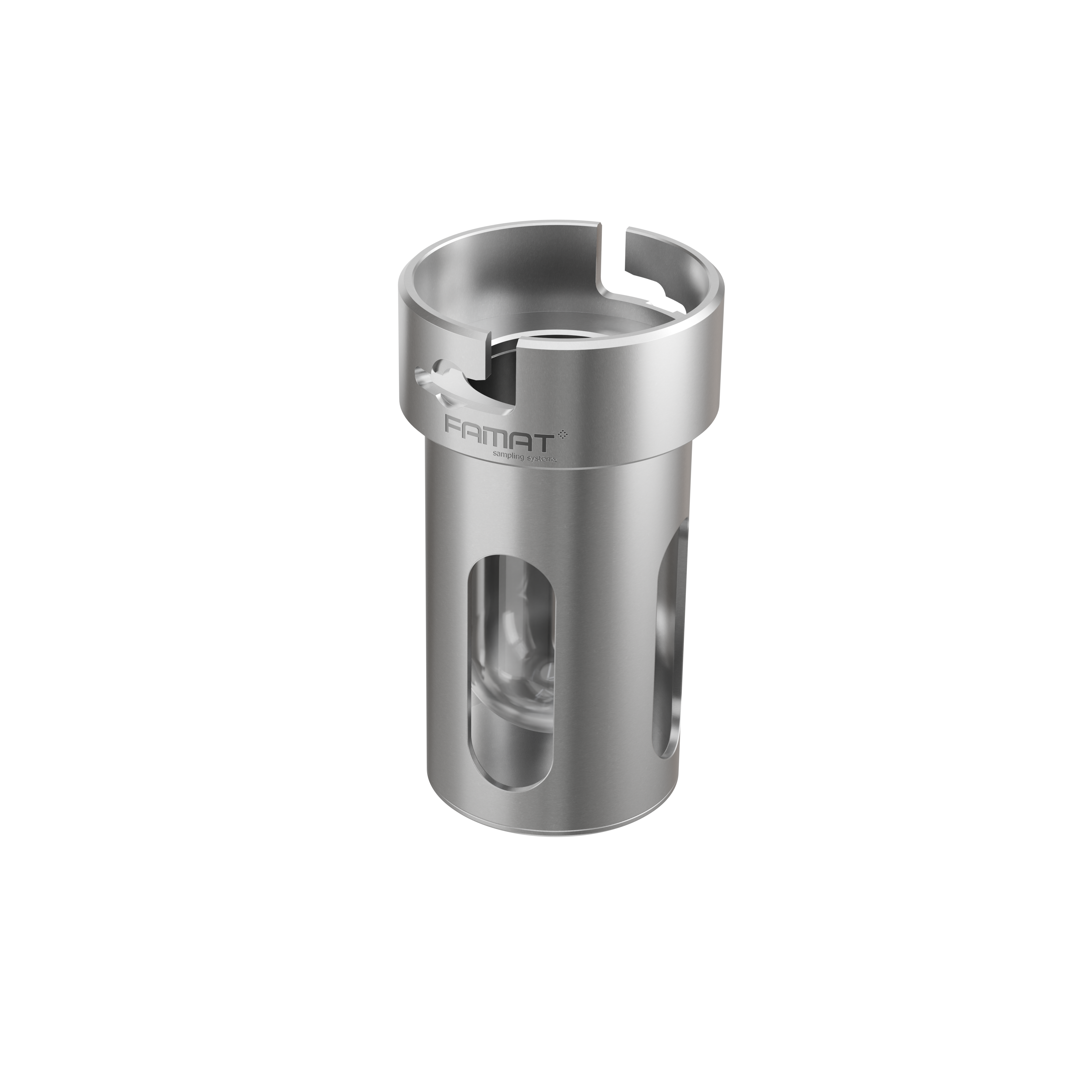

BOTTLE B101

This is the standard solution for valve DN50. Available as option also on DN25 valve.

Intergral passage from valve outlet to bottle, without dead zone.

Category: .

Description

This is the standard solution for valve DN50. Available as option also on DN25 valve.
The bottle is in borosilicate glass with a metal protection that prevents from damage.
The windows in the metal protection allow to see the product.
The material of the bottle body in contact with the product can be selected following the application.
ATEX approval for most application.

Additional information

MODEL

Size

150 ml

Applicable to

– Sampling DN50
– Sampling DN25
– Horizontal sampling

MAX TEMPERATURE

MIN. TEMPERATURE

PRESSURE CLASS

PRESSURE DESIGN

INT. ROUGHNESS

Protection materials

Stainless Steel 316L
